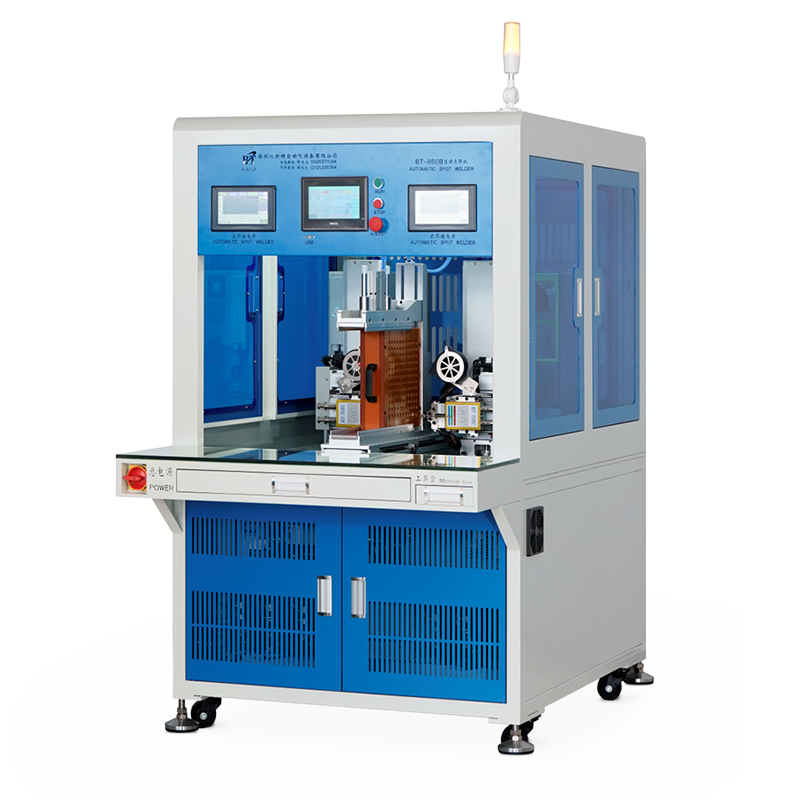

BT-850B-10000A Transistor (5-axis) Double-sided automatic spot welding machine -Al
2025-11-20 11:07:50
Product features：
Combined automatc weldingofcyindica batteres
一、Main function
Combined automatc weldingofcyindica batteres
二、Product characterisics
guiedonedn sodur osa en go ostoy mpoe hre
Real-time welding current monitoring,false welding or explosion alarm
Standard spot welding spot can be selected (different currents can be set for positive and negaive poles)
Spot welding coordinates can useU disk to import parameters
The operating mechanism adopts servo motor with linear module for precise positioning itself,and automatically detect the length errors of the welding needles
thasthe function of one-cick restoration to the factory settings
it is standardly equipped with a10,000A transistor welding power supply
三、Product parameters
Power | AC220V 50/60HZ 3.2KW | Maximum stroke | Xaxis:200-630mm Yaxis:200-390mm | ||
Air pressure | 0.4-0.8Mpa,Air source must be used when there is a fiter device to ensure that the flow of water-free impurities. | ||||
Suitable for nickel sheet thickness | (0.15-0.2MM thickness nickel sheet needs to be slotted) | ||||
Standard spot welding power | BT-10000A transistor welding power supply | ||||
Bump welding nickel sheet0.21-0.4MM | |||||
Welding output curent | Max 10000A | ||||
Suitable for spot welding pins | Imported diameter 1.7*100MM(spot welding) | ||||
Spot welding data | CAD data import/dot matix data import/manualinput | ||||
Imported diameter 4-4*6 fat-head welding needle (for bumpwelding) | |||||
| Operating power | Servo electic | ||||
Adaptive range | 14430/14500/18500/18650/21700 26650/26700/32050/32700/32140 | Equipment dimensions | L1630~W1050'H1780MM | ||
Droductiyt | About 4000PCS5000PCS elshour | Weight | V 460KG | ||
